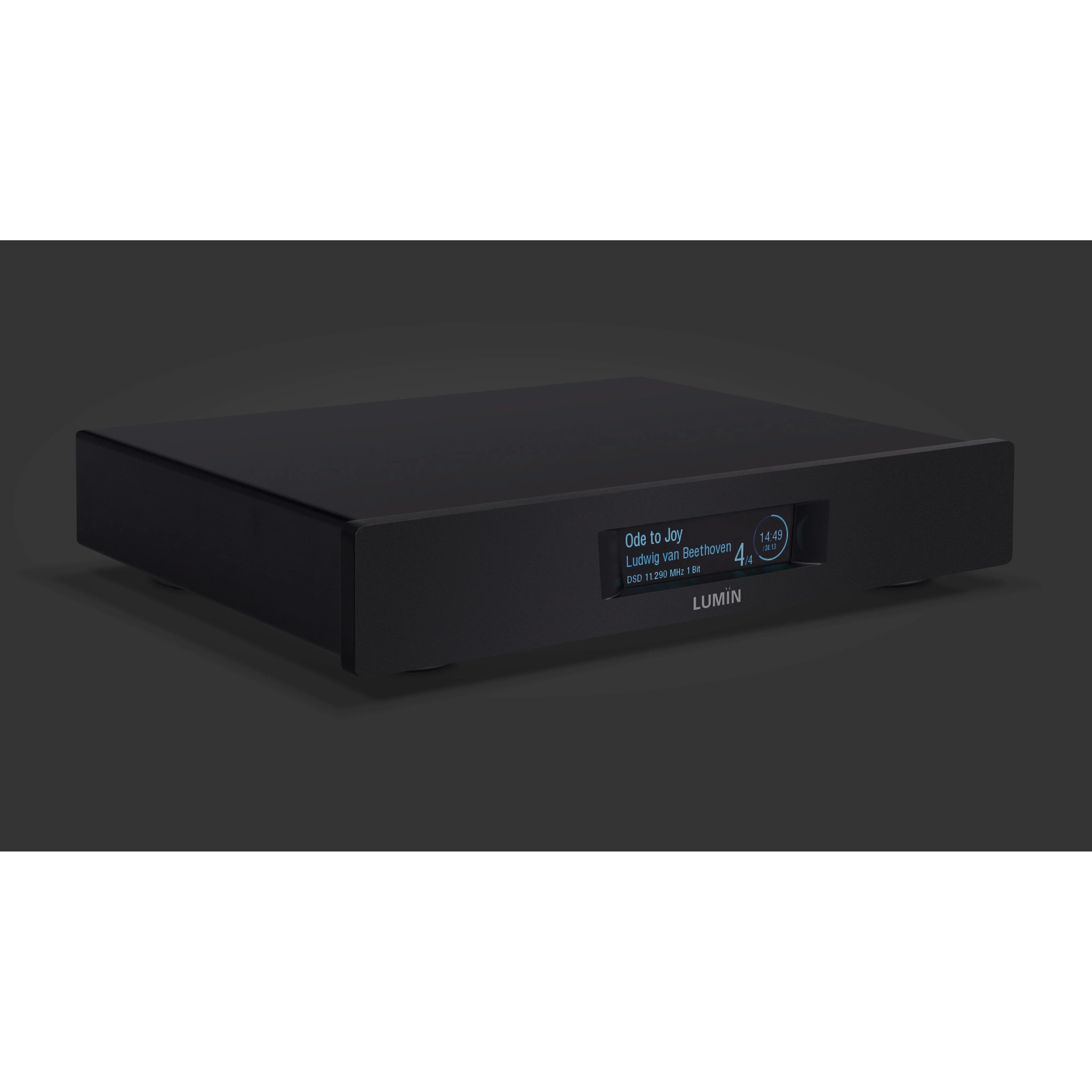

LUMIN D3 brings the audiophile potential of music streaming within everyone's reach.

Building on the success of our most popular and longest-standing model, LUMIN D3 inherits the Sabre DAC technology used throughout the rest of our range and combines it with our new all-aluminium compact chassis.

The latest LUMIN processor technology provides DSD256 upsampling and TIDAL Connect bringing audiophile-grade performance within your reach.

Main features

• Latest processor provides greater resampling flexibility
• New analogue output stage features Sabre DAC and a buffer including LUMIN X1 technology
• New DAC configuration featuring Sabre DAC ES9028PRO
• Retains fully balanced design including XLR outputs
• New surface finish taken from the high-end P1
• Upsampling and downsampling to every supported format up to DSD256/PCM384
• TIDAL Connect and Airplay 2 Compatible as well as Roon Ready, Spotify Connect, MQA, TIDAL, Qobuz, Plex and TuneIn

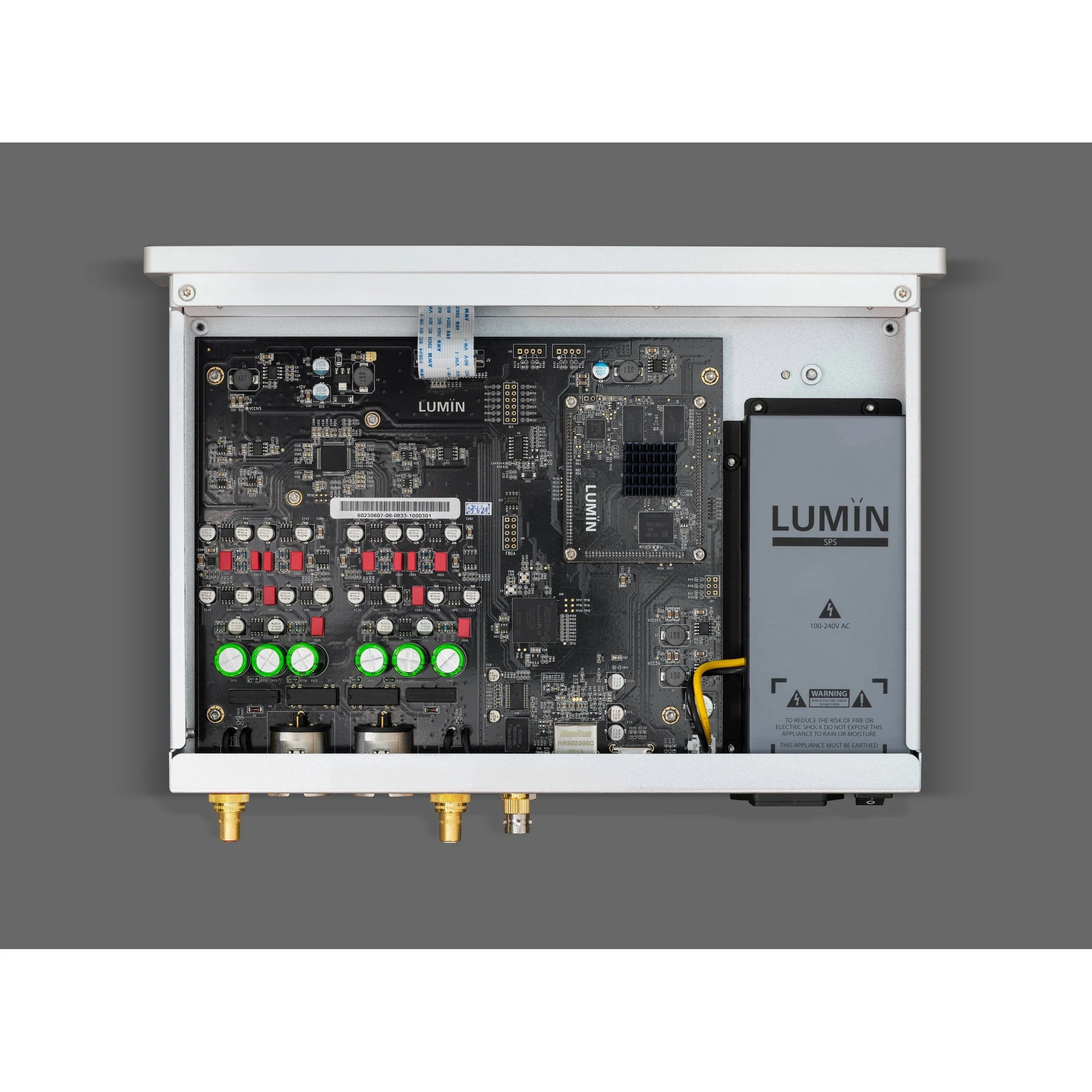

All-new processing system

• Completely new hardware and software provide a new foundation for LUMIN
• Increased processing power and storage capacity provide greater resampling flexibility and future-proofing.

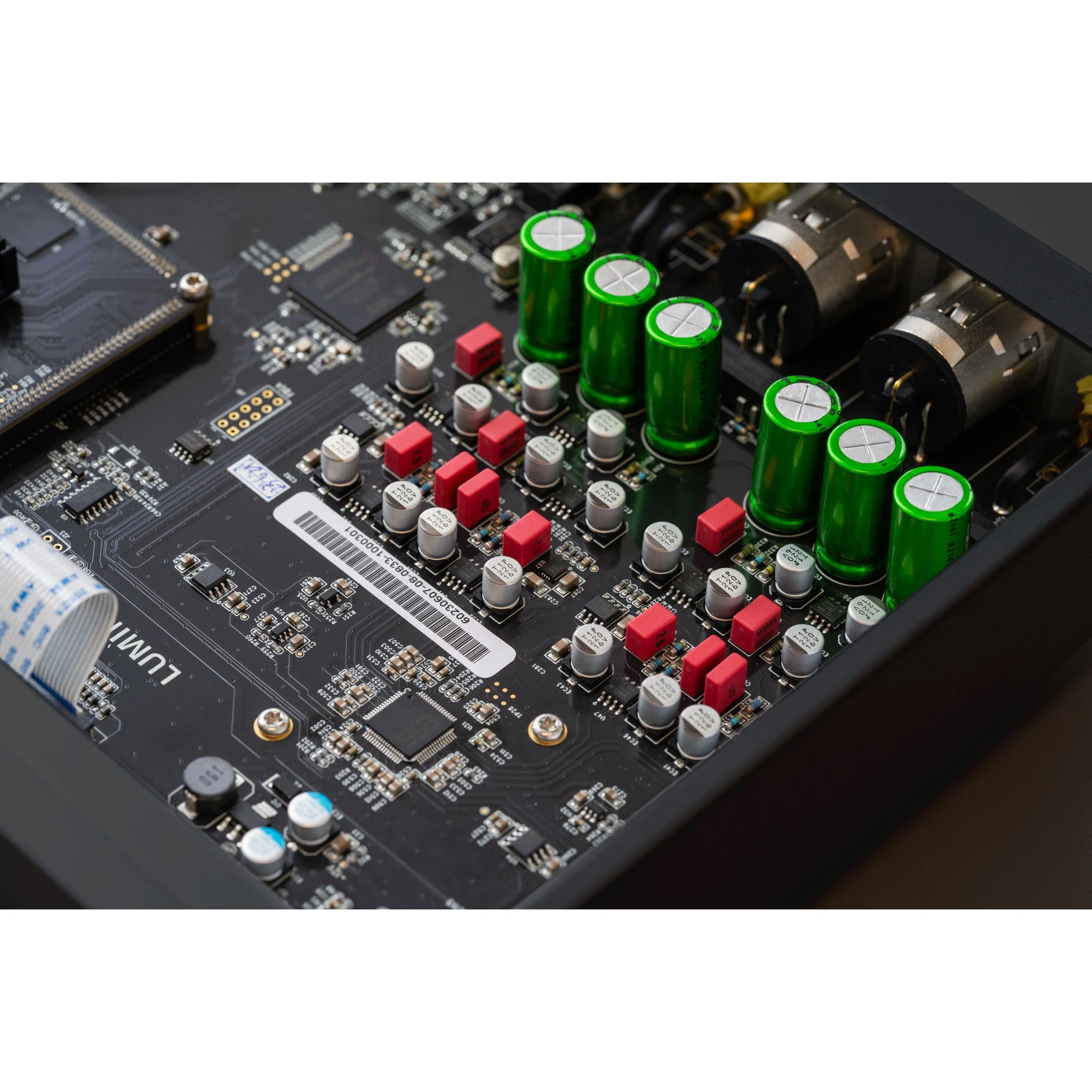

Precision analogue output stage

• ES9028PRO DAC with up to DSD256 & PCM384 playback support
• Analogue buffer includes LUMIN X1 technology
• Ultra-low-noise and high dynamic range

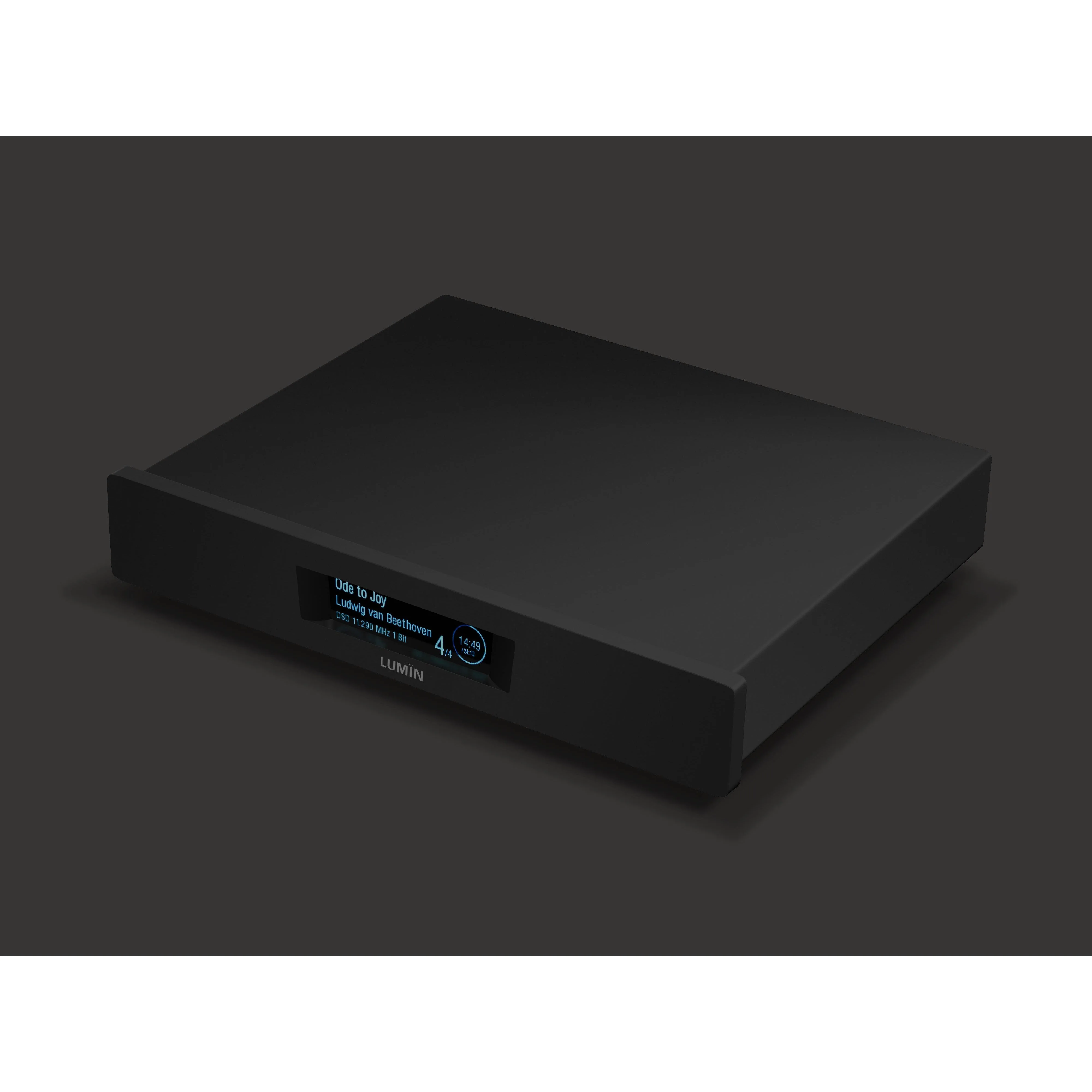

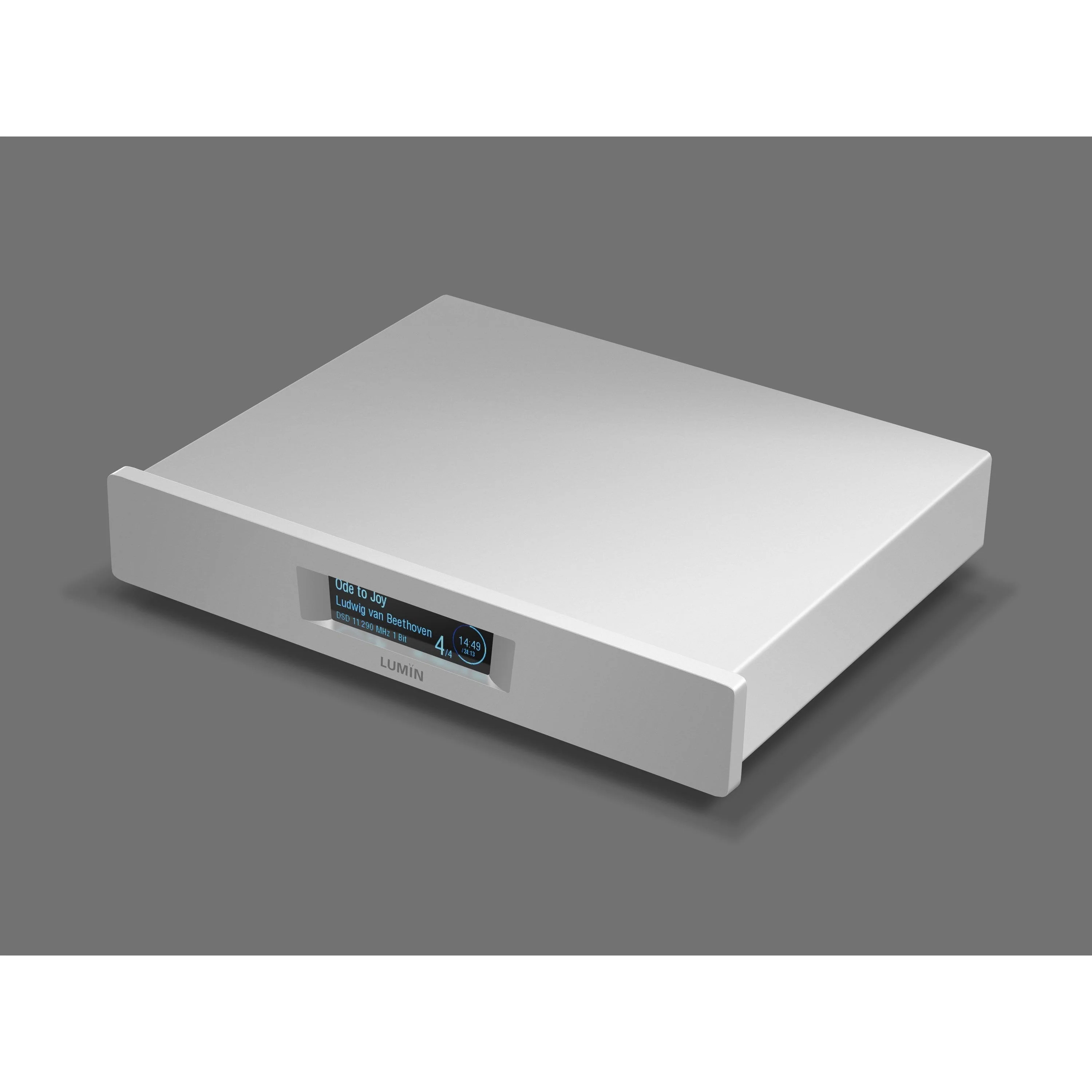

Full aluminium enclosure

• The thick CNC front panel and new all-aluminium enclousure provide superior damping performance
• Improves on D2 chassis by eliminating steel

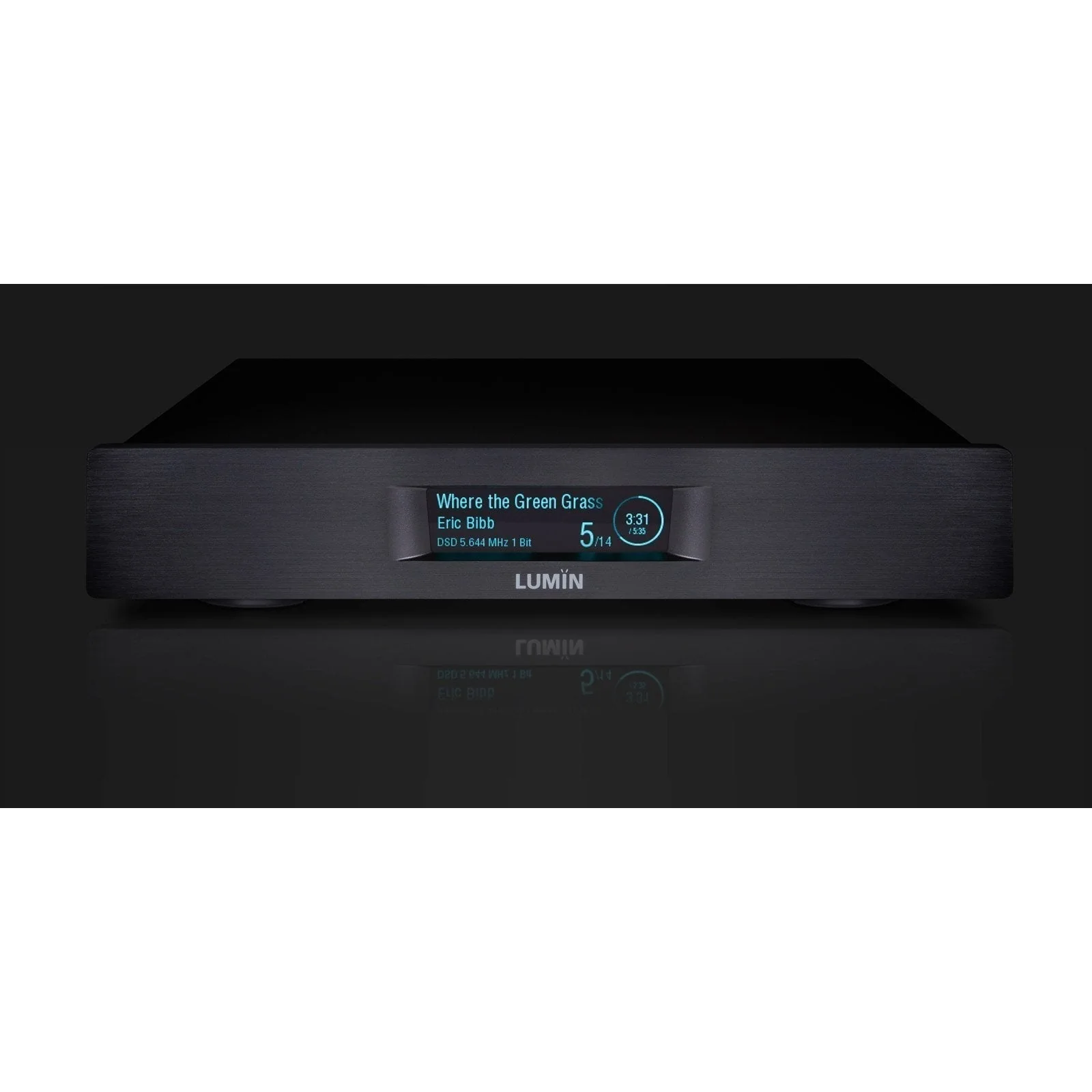

Builds on the massive success of LUMIN D1 & D2

Completely new processing hardware and software deliver improved features and increased resampling flexibility while retaining all the musicality that was noted in so many outstanding D1 & D2 reviews.

The new model is also finished in a new silky surfacing process taken from our high-end P1 that is less susceptible to finger marks and easier to clean.

All the usual LUMIN refinements

• From MQA to DSD, FLAC to WAV, LUMIN can play all the high-resolution formats you could ever want
• Native support for TIDAL, Qobuz, Spotify and AirPlay 2 compatible, giving you access to tens of millions of songs
• The unique and intuitive LUMIN App described as "the most convenient interface in existence" by TINMAN
• LUMIN programme of continuous development that has seen Roon, MQA, and Spotify support added in 2017 alone.

D3 SPECIFICATION

DSD SUPPORT:	Up to DSD256, 1-bit, Stereo
PCM SUPPORT:	Up to 384kHz, 16–32-bit, Stereo

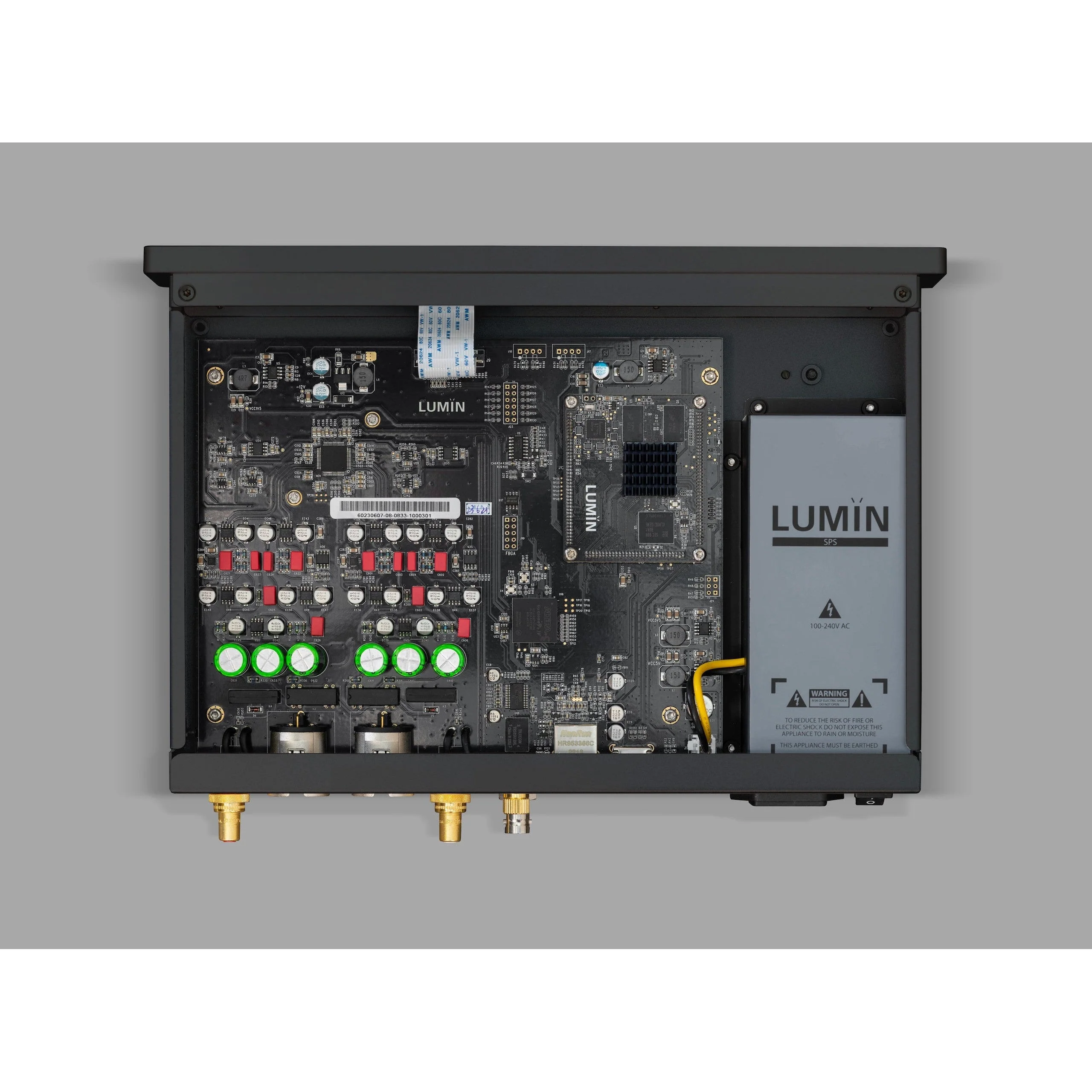

ANALOG OUTPUT STAGE:	ESS SABRE32 ES9028Pro DAC chip Balanced layout with high-quality components Completely redesigned analogue buffer includes audiograde output capacitor and ultra-low-noise and high dynamic range Discreet clock system for precision timing
UPSAMPLING RATES & BIT DEPTHS:	DSD256 upsampling option for all files PCM 384kHz upsampling option for all files

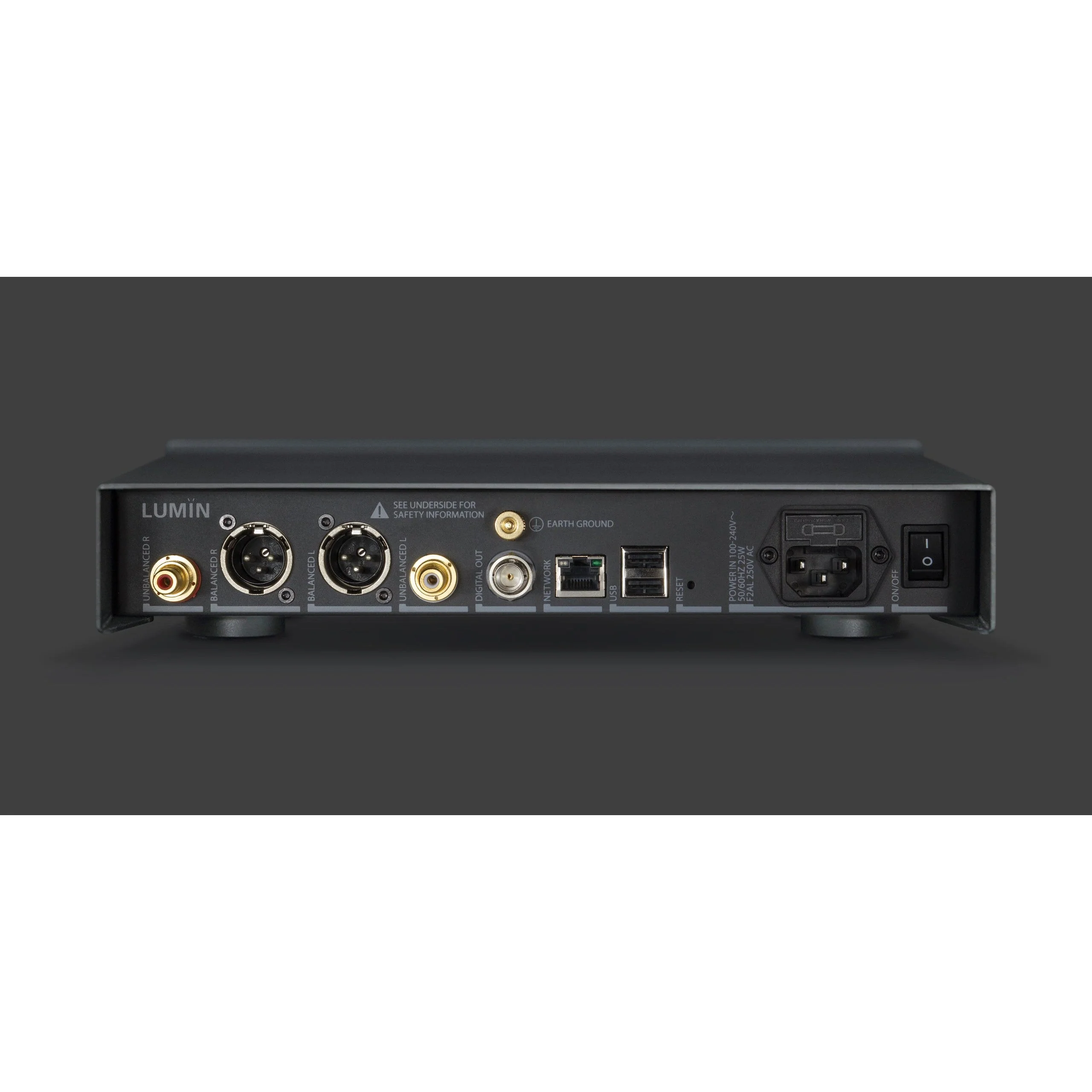

DIGITAL OUTPUT STAGE:	BNC SPDIF: PCM 44.1kHz–192kHz, 16–24-bit DSD (DoP, DSD over PCM) 2.8MHz, 1-bit
POWER SUPPLY:	Internal 100–240V AC auto-ranging Low-noise Shielded power supply compartment for reduced interference with delicate electronics
DIMENSIONS	300mm (W), 244mm (D), 60mm (H), 2.5kg
